EXCAVATOR
HIGH AND WIDE MODIFICATIONS

INCREASE TRACK STANCE AND CLEARANCE FOR REAL JOBSITE DEMANDS

When standard factory configurations limit where your machines can go, our High & Wide undercarriage conversions deliver the ground clearance and increased track width your toughest jobs demand.
Designed for demanding environments like forestry, land clearing, pipeline construction, and swamp or wetland operations, the high walker modification transforms your standard excavator into a purpose-built, heavy-duty workhorse.

REQUEST QUOTE
VIEW GALLERY
Icon with excavator on rocks indicating access to rough terrain
better clearance in rough terrain
Icon indicating a wider track or undercarriage stance of an excavator
increased excavator track stance
Icon with trees indicating access in forestry and off road
improved access in forestry & slopes
Icon with wrench and gear indication heavy duty or custom building
custom setup for specialized work

why high and wide?

STANDARD EXCAVATORS HAVE THEIR LIMITS

By increasing chassis height and widening the track stance, a High & Wide undercarriage gives your excavator the ground clearance and capability needed to work in soft ground, rough terrain, forestry, and other demanding environments where standard machines fall short.

A wider track stance is achieved by increasing the distance between the excavator’s track frames, creating a wider undercarriage than the factory configuration. This high walker undercarriage modification increases the overall machine footprint and is commonly used on excavators operating in forestry, pipeline, utility, mining, and other demanding applications. Every Tysea Armor High & Wide conversion is custom manufactured to the required track width for your machine, ensuring proper fitment with your make, model, and intended application.

Increased ground clearance is achieved by raising the excavator’s undercarriage, providing additional clearance between the lowest point of the excavator undercarriage and the ground. The chassis height is increased while retaining the excavator’s original track systems and undercarriage components where applicable. This added undercarriage clearance can provide greater space between the machine and obstacles such as stumps, rocks, slash, uneven ground, and other terrain commonly encountered in forestry, pipeline, utility, and land clearing applications.

Where required, the track frames can also be lengthened to accommodate a longer track assembly. In some high and wide undercarriage configurations, increasing the excavator chassis height and width requires the track frames to be lengthened to ensure proper track stance. These modifications are done on a custom basis dependent on the machine make, model, job application and customer requirements.

Every undercarriage conversion is designed around the customer’s machine and application, allowing chassis height, track width, ground clearance, and overall undercarriage dimensions to be customized where required. The final specifications are determined by the excavator make, model, operating conditions, transport requirements, and customer objectives to ensure the completed undercarriage is built for its intended purpose.
This give the custom optimal control when it comes to the ability to build a fully custom unit.

High & Wide undercarriage conversions are commonly used in industries where standard excavator undercarriages may not meet the operational requirements of the job. Applications include forestry, pipeline construction, utility work, land clearing, mining, oil and gas, right-of-way maintenance, and other demanding environments where additional ground clearance, a wider track stance, or a custom undercarriage configuration may be required. Each conversion is manufactured to suit the machine, application, and working conditions.

Due to the increased chassis height, greater clearance is created between the undercarriage and the ground, increasing the separation between critical undercarriage components and potential ground hazards. For applications where additional protection is required, High & Wide undercarriage conversions can also be equipped with custom undercarriage guarding to further protect vulnerable components.
Protection options may include;

  • Heavy Duty Belly Pans
  • Stump Pans
  • Rock Guards
  • Hose Protection
  • Idler Guards
  • Custom Fabricated Guarding

Each protection package is designed around the excavator make, model, operating environment, and customer requirements.

Tysea Armor High & Wide undercarriage conversions are available for a variety of excavator makes, models, and sizes. Every machine high walker modification is manufactured based on the existing undercarriage design, track frame configuration, track components and the customer’s intended application. Because every excavator is different, each High & Wide conversion is custom manufactured to suit the specific machine and project requirements.
A High & Wide conversion can be completed on virtually any make and model of excavator, allowing customers to customize their existing machine to reduce the limitations associated with a standard undercarriage configuration.

High & Wide undercarriage conversions can be equipped with a wide range of custom guarding and access systems to suit the intended application. Every guarding and access package is custom manufactured to suit the excavator make, model, operating environment, and customer requirements.

  • Heavy Duty FOPS (Four post bolt to machine body)
  • OPG / FOG (Bolt to cab guarding)
  • Door Guards
  • Driver Side, Rear and Boom Side Window Guards
  • Catwalks
  • Machine Body Guarding
  • Boom and Stick Guarding
  • Undercarriage Guarding
  • Cylinder and Hose Guarding
MACHINE GUARDING
CAB GUARDING
ACCESS SYSTEMS

see the difference.

FEEL THE DIFFERENCE.

A wider track stance and increased chassis clearance provide better access, strength and capabilities in demanding terrain.

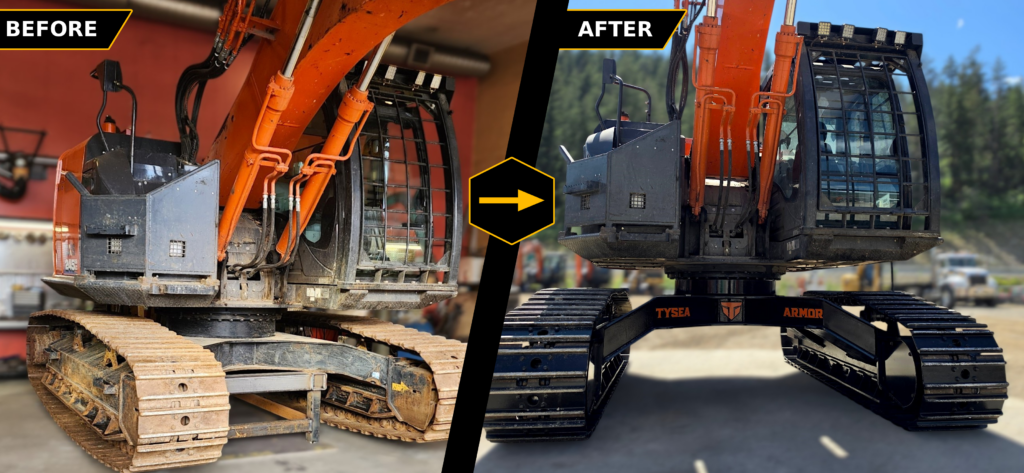

Hitachi ZX245 US High and wide before and after side by side comparison
HIGH AND WIDE GALLERIES
GET A QUOTE

UNDERCARRIAGE CONVERSIONS

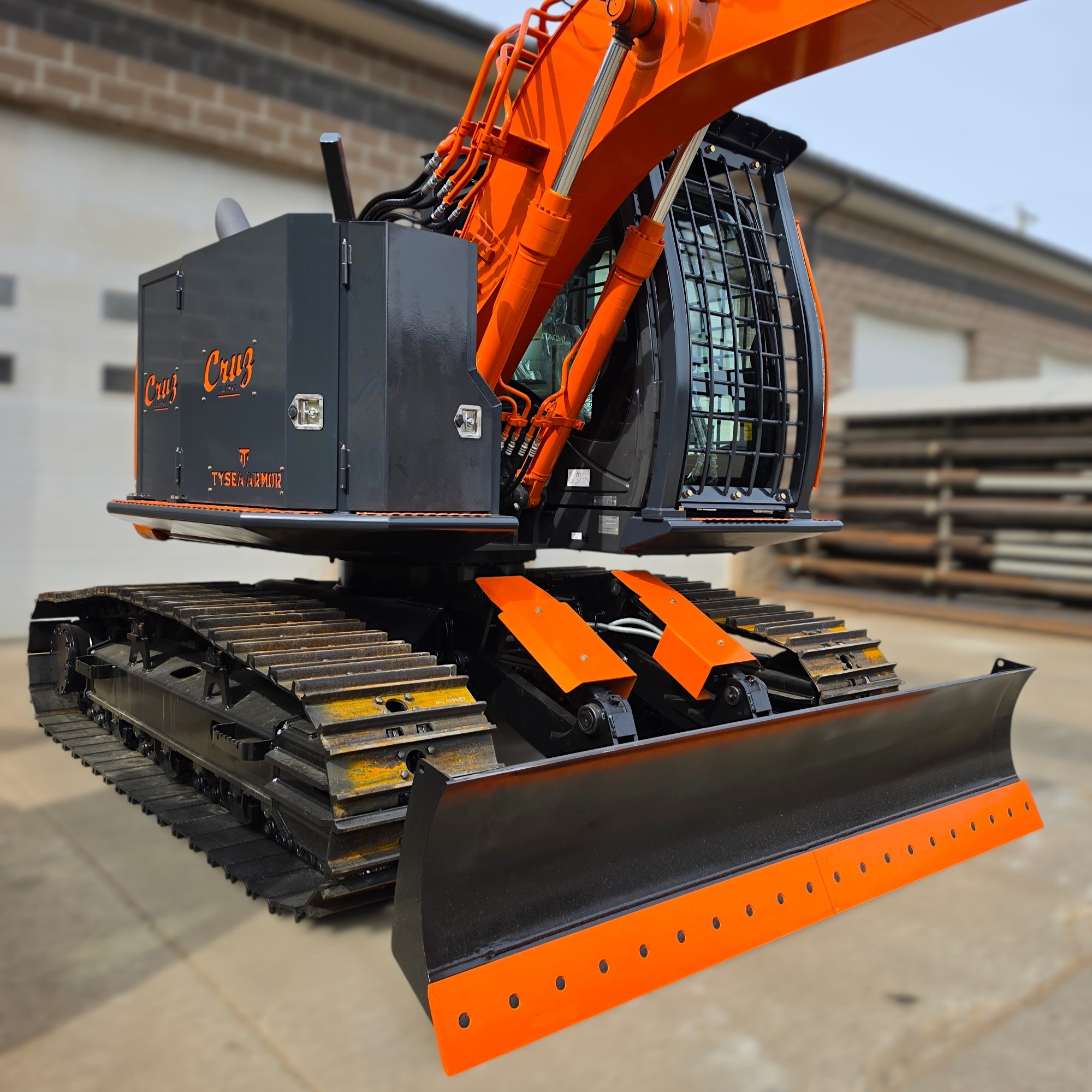

  • Hitachi ZX135 US high and wide conversion with blade extension and guards

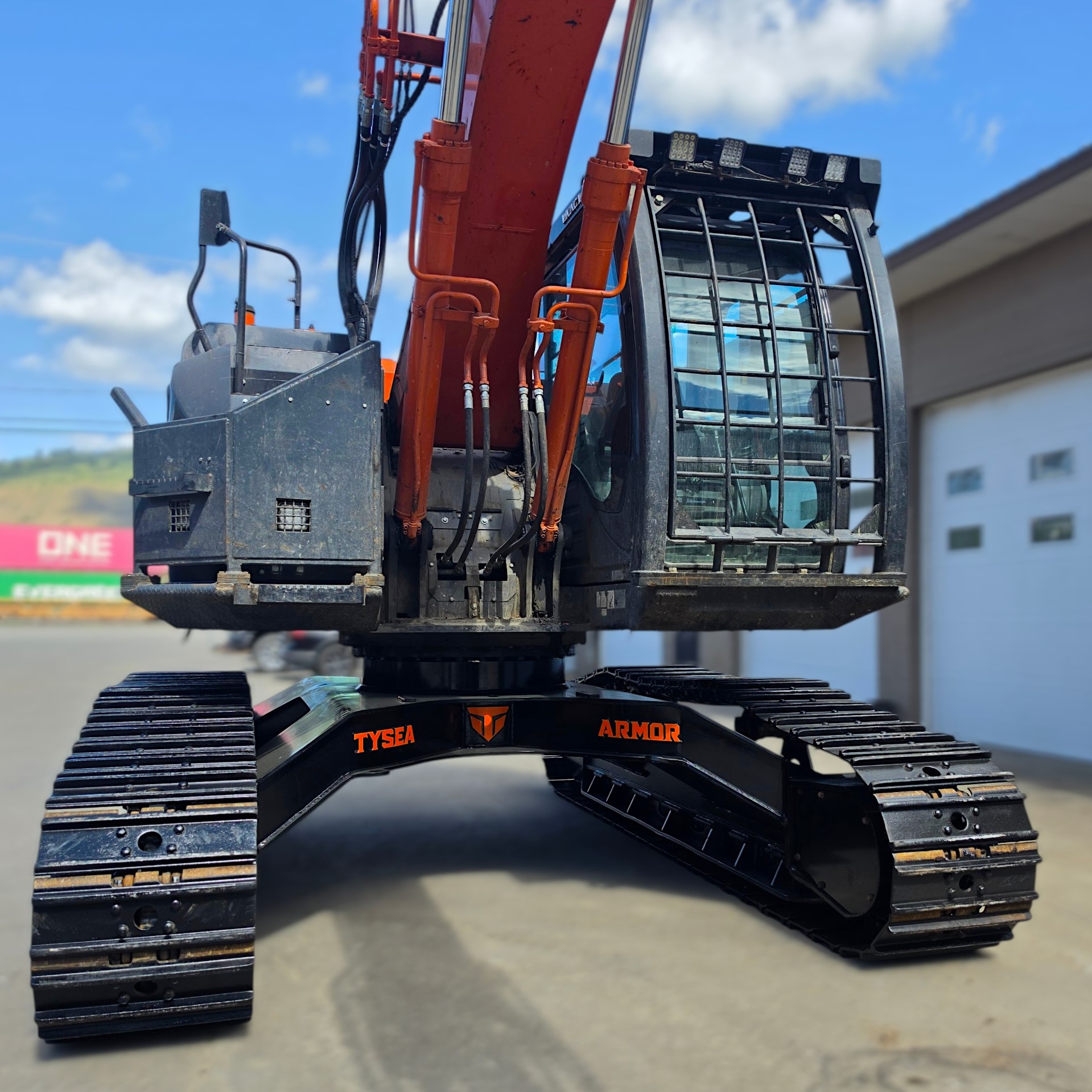

  • Hitachi ZX245 US with full undercarriage conversion to a high and wide

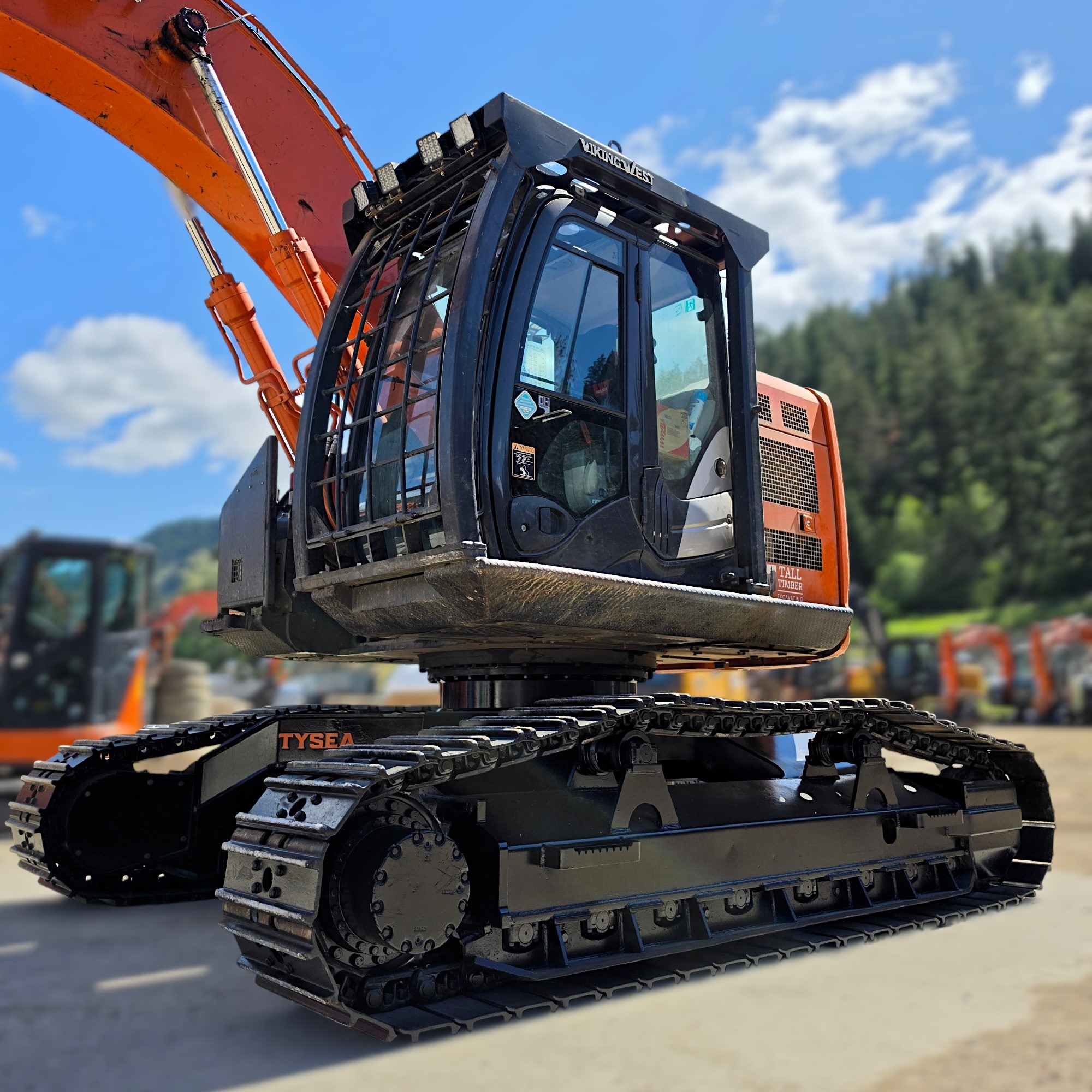

  • Hitachi ZX245 with high walker undercarriage modification built by Tysea Armor

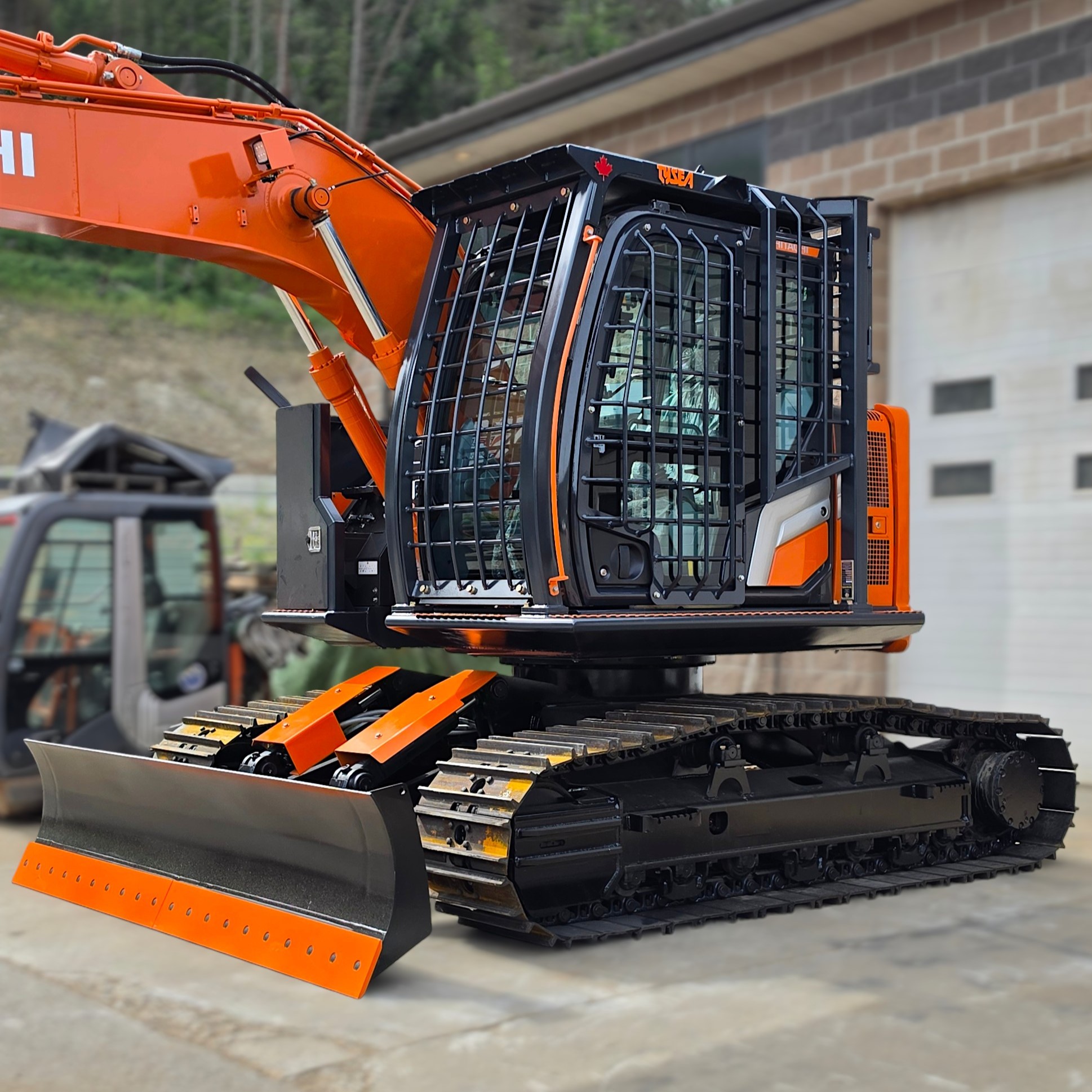

  • Orange Hitachi excavator with guarding and undercarriage conversion

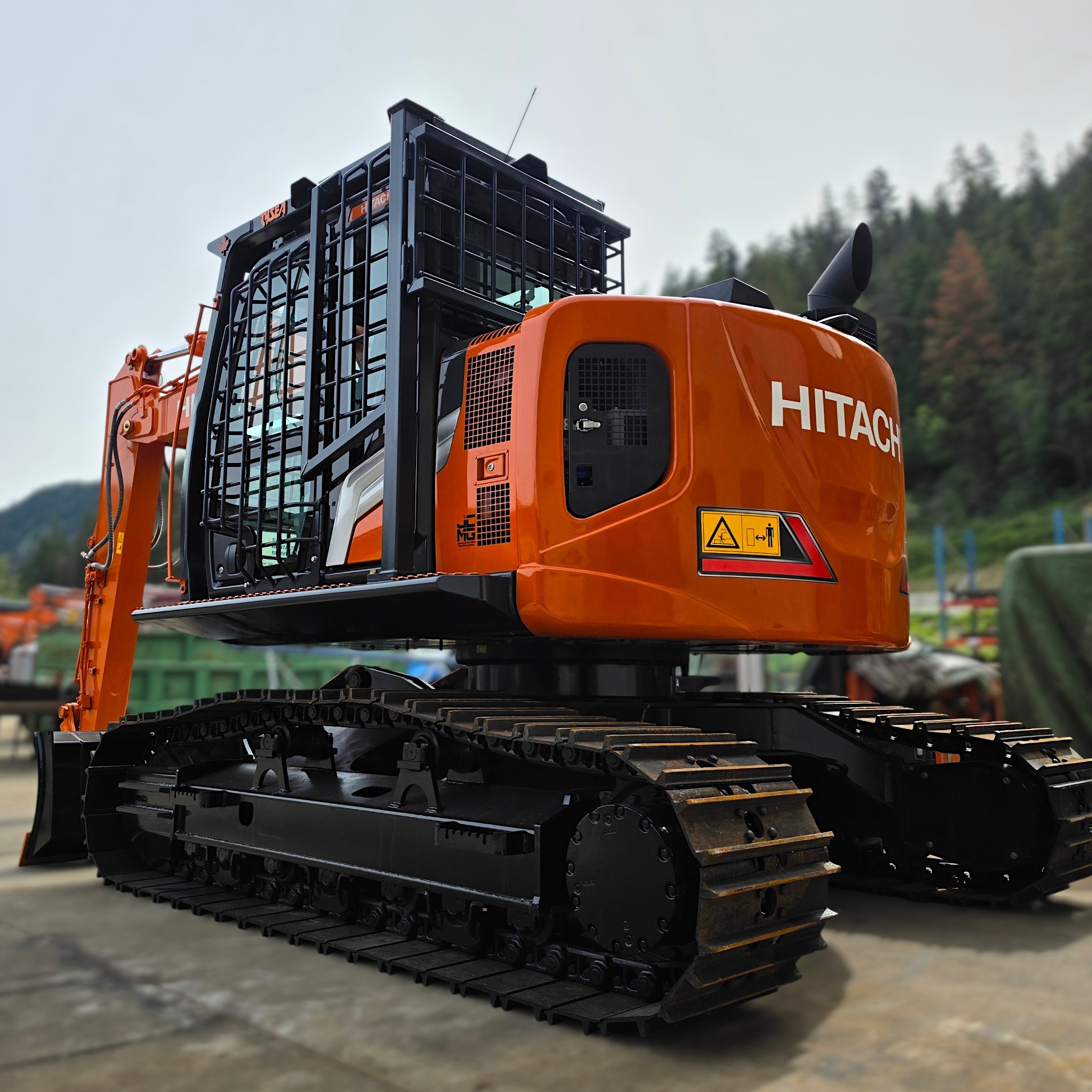

  • Hitachi ZX135 zero swing excavator with high and wide conversion with full guarding package

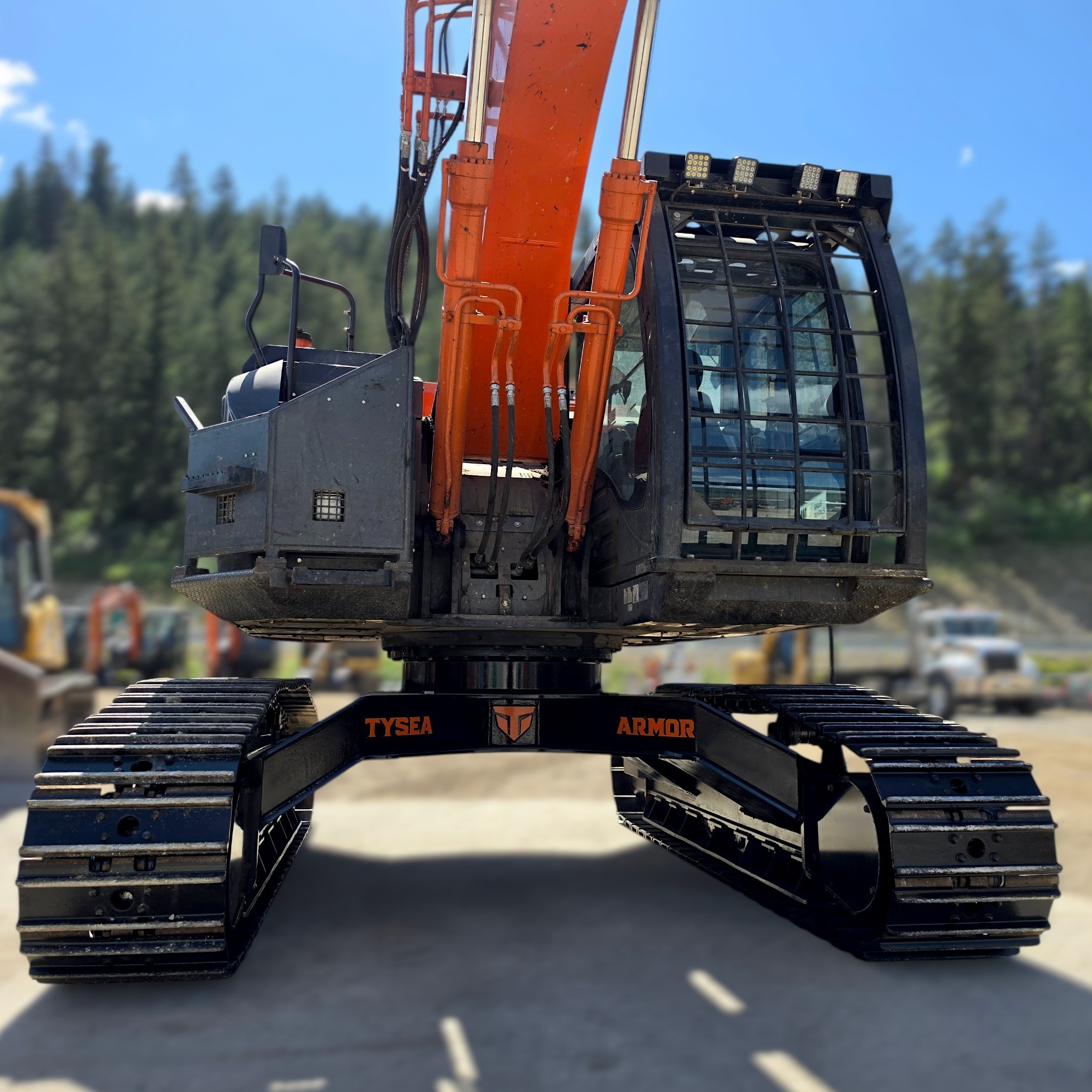

  • Hitachi ZX245US with high walker undercarriage conversion

BUILT AROUND YOUR MACHINE

We design every high and wide modification around your excavator model, application, and operating environment. Don’t see your machine listed? Contact us to discuss a custom build.

HITACHI JOHN DEERE CAT KOMATSU
KOBELCO LINK-BELT HYUNDAI CASE
DEVELON VOLVO SANY LIEBHERR

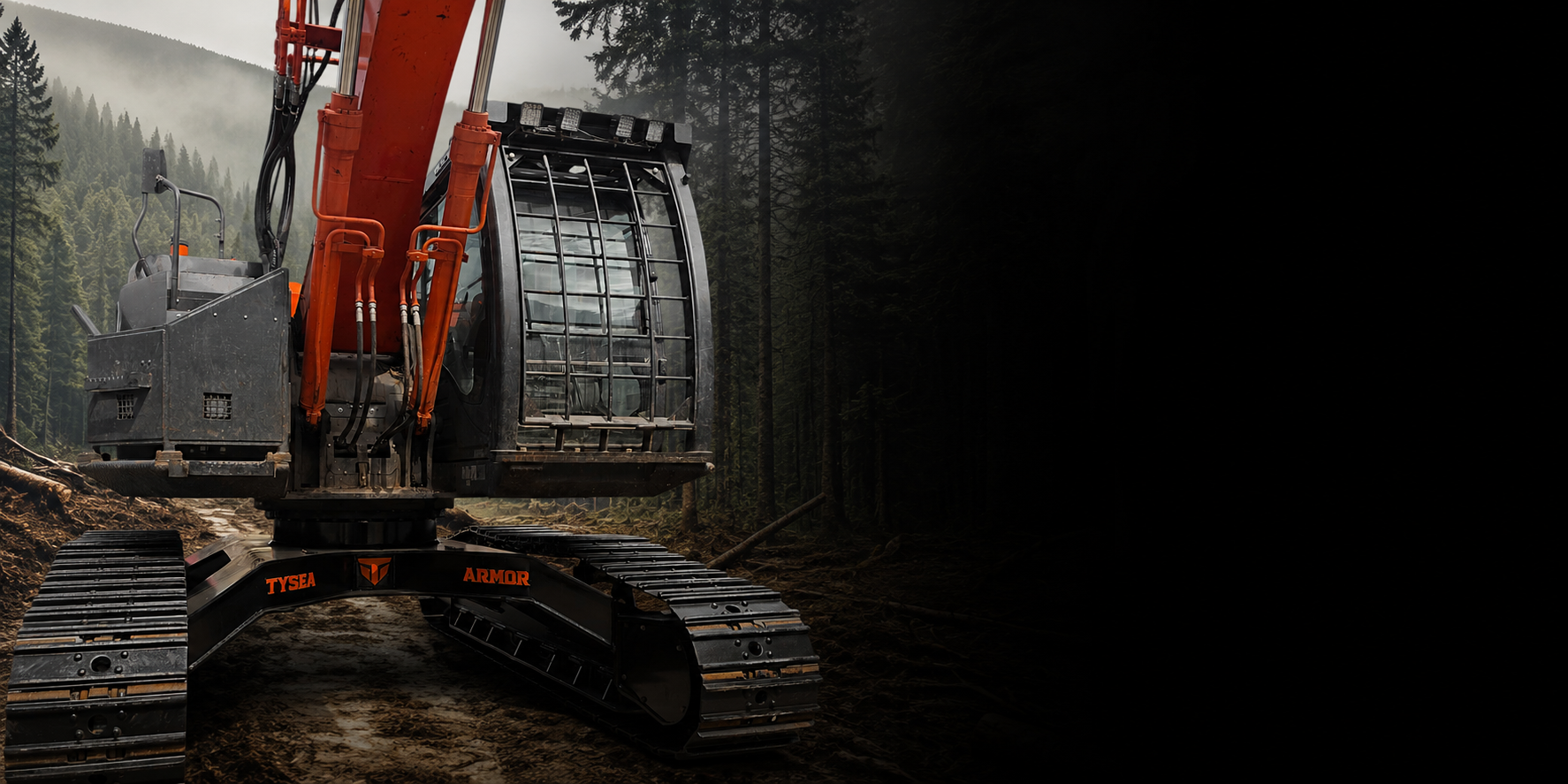

Hitachi ZX245 in a forestry setting featuring a high walker undercarriage conversion

need a high and wide build?

Contact Tysea Armor today to discuss your project and discover how our custom modifications can improve performance, durability, and productivity. Tell us your machine’s make and model, the industry you work in, and the challenges you face, we’ll prepare a customized solution and quote tailored to your specific application.

REQUEST QUOTE

you got questions?

we have the answers

A High & Wide undercarriage is a custom excavator undercarriage modification that increases the machine’s ground clearance and track width beyond the factory configuration. Depending on the application, the conversion can also include track frame extensions, increased track length, undercarriage protection, guarding, and access systems. Every excavator high walker conversion is custom manufactured to suit the excavator make, model, and the customer’s specific requirements.

Yes. In fact, modifying existing excavators is what we specialize in. With over 30 years of manufacturing experience, we understand what operators need from a custom-built machine. We can modify virtually any make and model of excavator, tailoring the high walker conversion to your machine, job site, and operational requirements. Whether you need increased ground clearance, a wider track stance, additional undercarriage protection, or a complete machine package with guarding and access systems, every conversion is custom manufactured to suit your specific application.

Yes. If your excavator is already in our shop for a High & Wide conversion, it’s the ideal time to install additional guarding. We highly recommend incorporating cab guarding and other machine protection during the build, as it allows every component to be designed and integrated together. At a minimum, we recommend cab guarding to help meet the safety requirements of your work site where applicable. Additional options include FOPS, OPGs, window guards, door guards, belly pans, stump pans, rock guards, travel motor guards, and other custom machine protection. Every guarding package is custom designed and manufactured to suit your excavator, application, and operational requirements.

CAB GUARDING
MACHINE GUARDING

The increased chassis height provides additional ground clearance, allowing the excavator to better navigate obstacles commonly encountered in rough and uneven terrain where standard excavator undercarriage clearances may be limiting. The wider track stance increases the distance between the tracks, creating a broader machine footprint tailored to the intended application. The additional clearance between the ground and the undercarriage also increases the separation between vulnerable undercarriage components and ground hazards such as rocks, stumps, slash, and debris.

Yes. Every High & Wide undercarriage conversion is custom built to suit the customer’s requirements. Chassis height, track width, ground clearance, and overall undercarriage dimensions can all be configured based on the excavator make and model, intended application, operating environment, and transport requirements. There is no standard high walker configuration, each conversion is built specifically for the machine and its intended use.

Yes. We keep a limited selection of high clearance excavator undercarriages in stock for certain excavator makes and models. Compatibility depends on your machine’s make, model, and existing undercarriage configuration. If a stock undercarriage is not available, we can modify your existing track frame assembly or source one and complete the High & Wide conversion without requiring the entire excavator to be in our shop. Installation requirements vary depending on the machine and should always be completed in accordance with the applicable manufacturer specifications and installation procedures.

Tysea Armor High & Wide undercarriage conversions are available for a variety of excavator makes, models, and sizes. Every machine high walker modification is manufactured based on the existing undercarriage design, track frame configuration, track components and the customer’s intended application. Because every excavator is different, each High & Wide conversion is custom manufactured to suit the specific machine and project requirements.
A High & Wide conversion can be completed on virtually any make and model of excavator, allowing customers to customize their existing machine to reduce the limitations associated with a standard undercarriage configuration.

Excavator high and wide undercarriage conversions are commonly used in industries where increased ground clearance, custom undercarriage dimensions, and a wider track stance are beneficial. These include forestry, pipeline construction, utility work, oil and gas, mining, land clearing, right-of-way maintenance, environmental projects, and other demanding applications where standard excavator undercarriages may not meet the requirements of the job.
